  • Direct acting plunger solenoid valve -BONA6013
  • Direct acting plunger solenoid valve -BONA6013

    Direct acting plunger solenoid valve
    • 0.00
      0.00
产品特性与参数

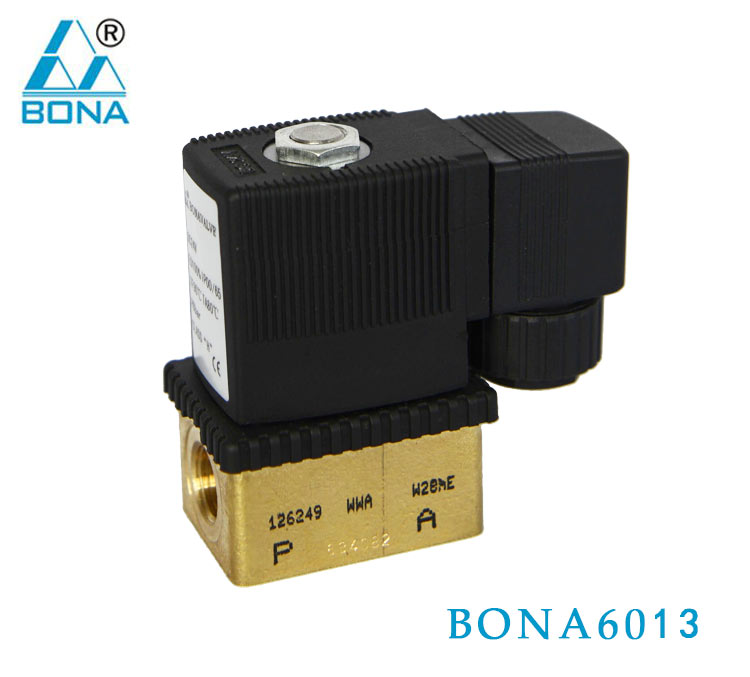

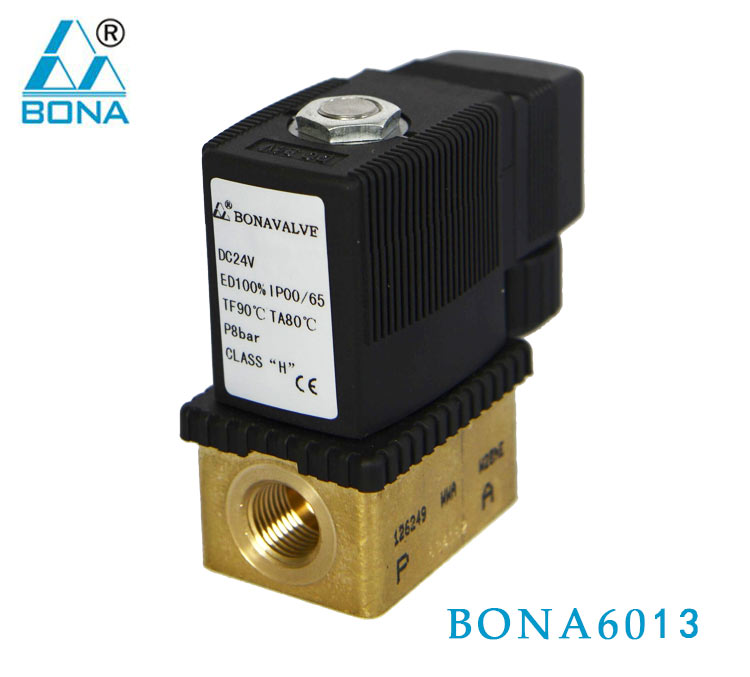

Direct acting plunger solenoid valve

2/2 compact electro magnetic valve, direct acting type, general type, single installation or a combination of the installation and integration of the magnetic isolating pipe, instead of burkertye 6013 electromagnetic valve, which is suitable for in a variety of media, feeding, filling and the highest temperature can reach + 180 degrees. It can also be used in vacuum technology.


Port Size:(接口口径)

G1/4" ,G1/8"

Body material:(阀体材质)

Brass (铜)

Seal ring material:(密封材质)

NBR 、EPDM

Max Media Temperature:(介质温度)

-10℃至+100℃

Voltage available:(可选电压)

AC220V,AC110V,DC24V,AC24V

Inner Orifice(流量通径)

2-5mm

work Pressure:(工作压力)

0-10 bar

Protection Class:(保护等级)

IP65
