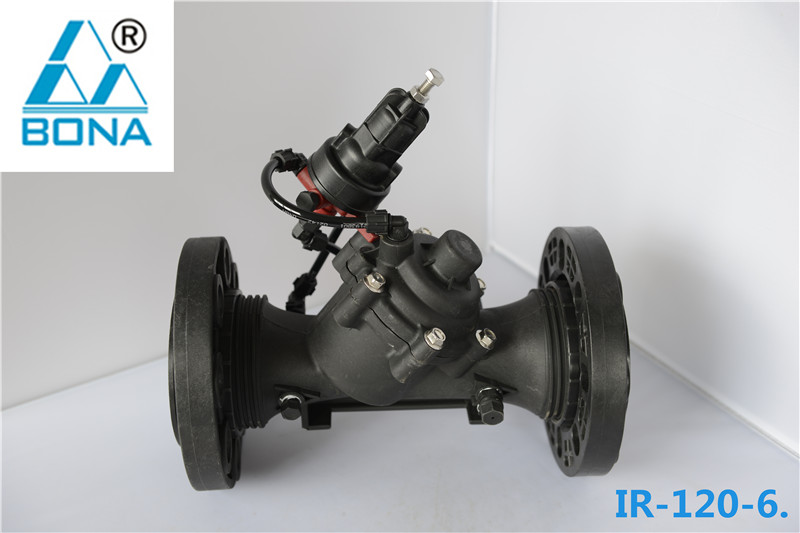

IR-120-6 pressure relief valve

IR-120-6 quick relief valve is composed of relief valve, base valve and relief pilot valve. There are two specifications of 3-inch quick relief valve and 3-inch flange relief valve.

When the pressure of the pipeline system exceeds the set value, the pressure relief valve opens quickly to release the pressure and discharge the excessive pressure to avoid pipeline explosion and equipment damage.

technical parameter

Pressure relief valve specification 3 "

Interface mode: thread / flange

Working pressure 0.35-10bar (5-145psi)

Pressure regulating range 1.0-10bar (15-145psi)

Medium temperature ≤ 60 ℃
