    2/3 compact solenoid valve
    • 0.00
      0.00
产品特性与参数

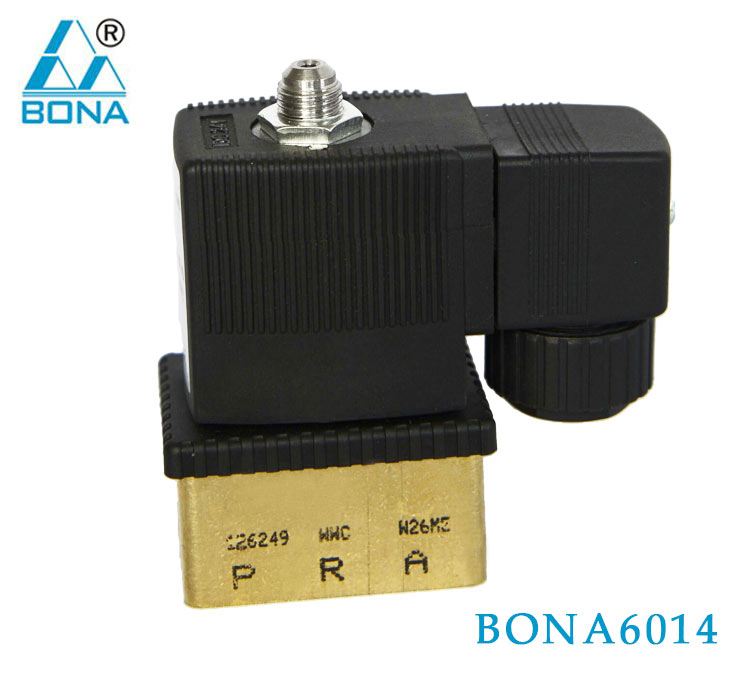

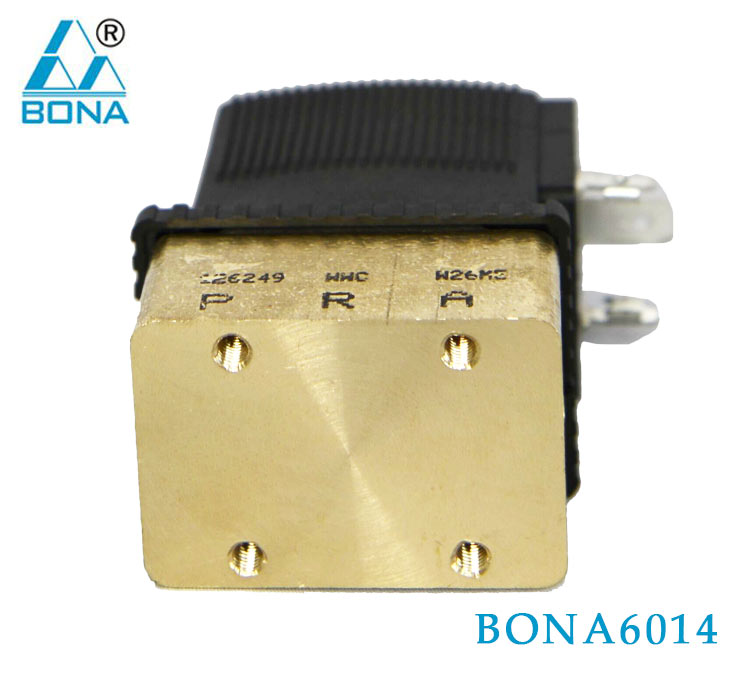

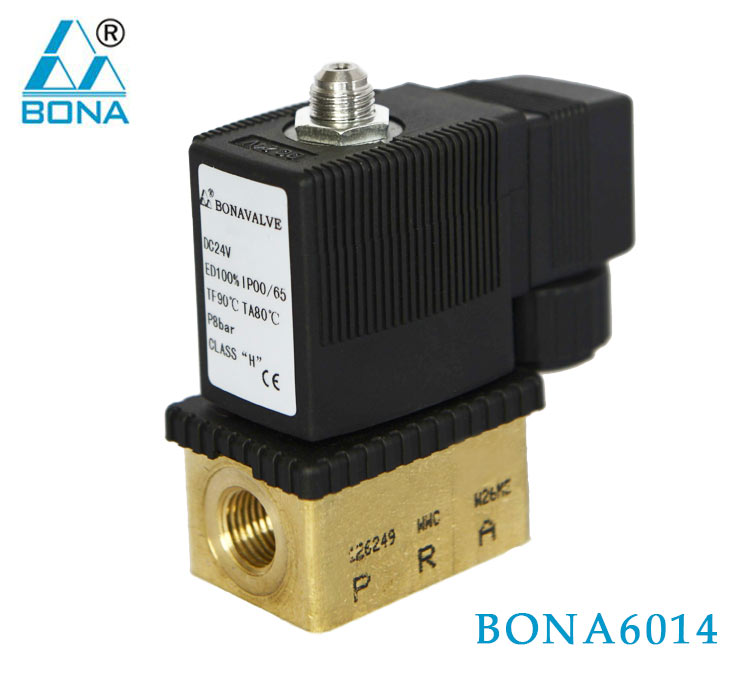

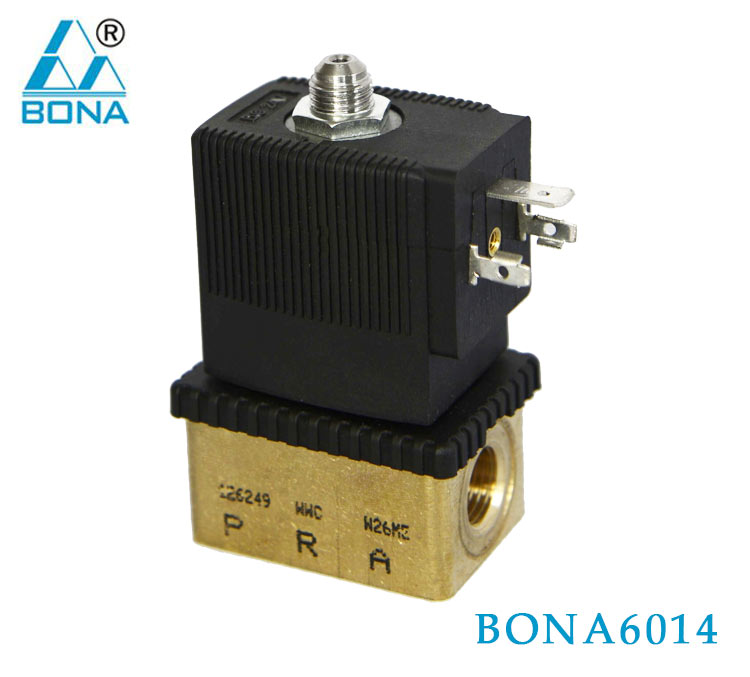

2/3 compact solenoid valve

2/3 straight plunger type electromagnetic valve, integrated magnetic isolating pipe, alternative Burkert 6014 solenoid valve, widely used in various types of water, gas automatic control.


Port Size:(接口口径)

G1/4" ,G1/8"

Body material:(阀体材质)

Brass (铜)

Seal ring material:(密封材质)

NBR 、EPDM

Max Media Temperature:(介质温度)

-10℃至+100℃

Voltage available:(可选电压)

AC220V,AC110V,DC24V,AC24V

Inner Orifice(流量通径)

1.5-2.5mm

work Pressure:(工作压力)

0-16 bar

Protection Class:(保护等级)

IP65
